This is a system for guiding continuously running webs, conveyor belts, etc.
Actuators, sensors, and controllers that are optimal for various materials,
pass lines, and other conditions can be selected from each lineup.

Nip both ends of the web with rollers and align the web at the center by the
repeating action of opening and closing movement of the rollers. Electric type and
pneumatic type are available, and we offer different models depending on the environment and location condition of application.

A device that eliminates vertical wrinkles that occur on a running web,
or actively widens the the web with a firm expanding function.

A system which can perform web edge control, center control, width measurement,
width control, etc. with high accuracy. The sensor can be selected from
a camera sensor or a photoelectric transmission sensor which uses LED.

A system that can perform tire cord selvage opening, width control,
and web guiding as well as rubber web and liner guiding required
in the tire manufacturing process.

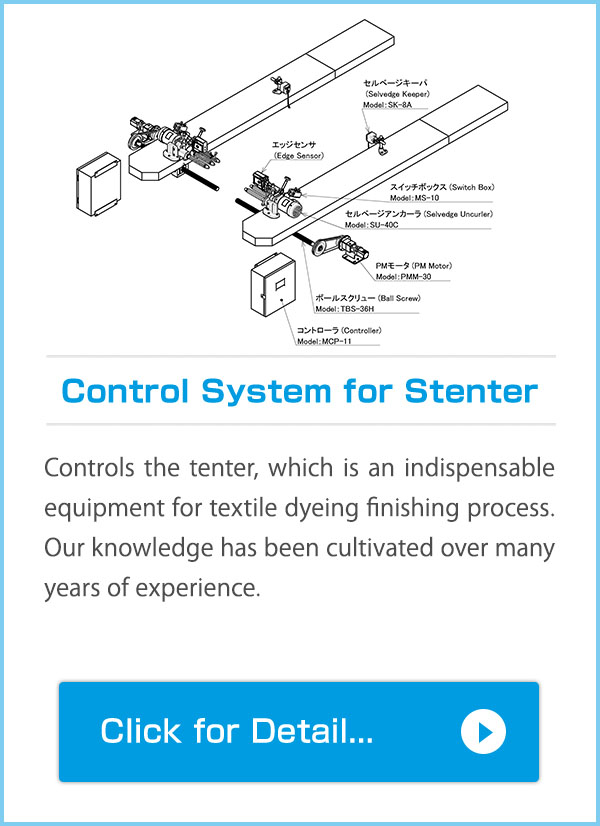

Controls the tenter, which is an indispensable equipment for textile dyeing
finishing process. Our knowledge has been cultivated over many years
of experience.

The combination of Detwister and web expanding/guiding system contributes to improved productivity in the scatcher Line.

・Needle Detector
・Air Shaft

As the sole agent in Japan, we import, sell and do repair/maintenance
of the measuring and control systems manufactured by Mahlo Germany.

PRODUCTS

MOVIE

WEBSTAR WB-210

The slats bars mounted on the core roller slide laterally in the direction that brings the web back to the right position.Travel of lateral movement, i.e, the inclination shown in the picture is controlled by the signals from the sensor.

TK EXPANDER

Expander roller has 8 slide bars or slatted rubbers around the roller which spread out the web according to the inclination of a slanting guide unit while the roller rotates.

Information

MOVIE

WEBSTAR WB-210

The slats bars mounted on the core roller slide laterally in the direction that brings the web back to the right position.Travel of lateral movement, i.e, the inclination shown in the picture is controlled by the signals from the sensor.

TK EXPANDER

Expander roller has 8 slide bars or slatted rubbers around the roller which spread out the web according to the inclination of a slanting guide unit while the roller rotates.
